Image Map Calibration

This feature enables calibrating of an image of a map and placing it over a background map. For example when you go to the ZOO or a park simply take a picture of its detailed plan displayed on a board at the entrance. After that, you can calibrate the photo according to your background map and use it for your further navigation.

Available only with Premium

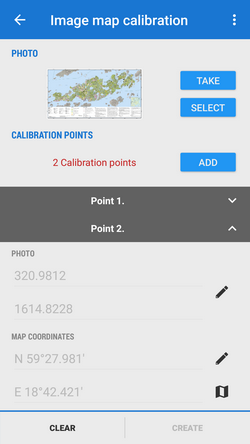

• open the function in Menu > All features > Map tools > Image map calibration, a dialog appears
• tap Take to take a photo with your phone camera - the more quality camera, the better
• or Select to choose the photo from your device memory, from Dropbox etc.

• tap Add and choose a distinct point (a hill summit, crossroads etc.) on your picture

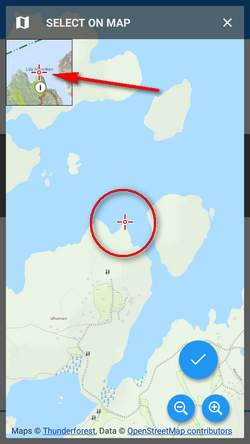

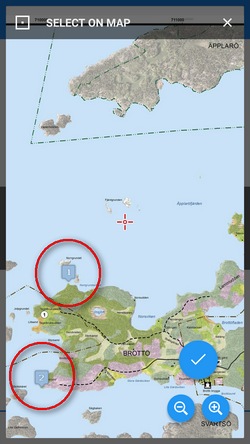

• tap in Map coordinates menu and choose the same point on your background map

• repeat this procedure 4 times - try to select points making a rectangle. You can edit their positions by tapping or remove them.

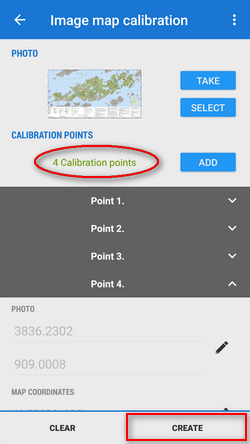

• when you are ready with your four points the status line turns green and the Create button activates

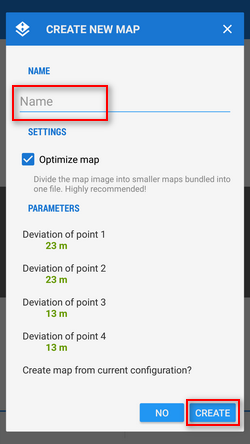

• calibration points overview appears - indicates their deviation.

  When it is not too significant you can name the new map and proceed to its rendering

If you have more map images of the same size and scale to calibrate you can use one configuration for calibrating them all:

1. calibrate the first image
2. save the calibration configuration:

3. open the next image
4. calibrate
5. repeat ad hoc.

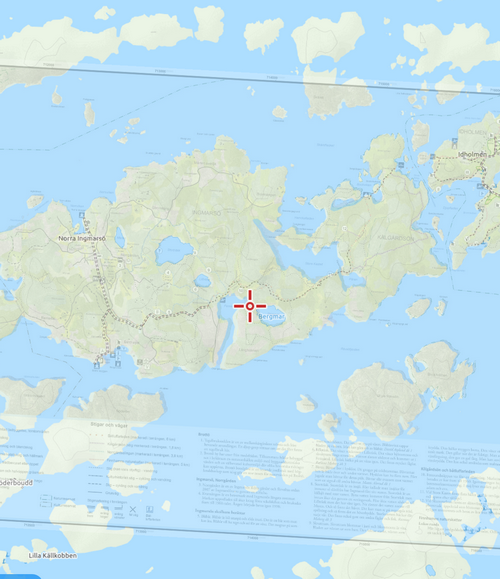

Your calibrated map appears now as an overlay and can be managed in Map Items box or in the Active items of the content panel. There you can change the opacity of the calibrated map by selecting it and moving the opacity slider:
