Web route planner & library
…in development…
Mobile application Locus Map has also its web counterpart available at web.locusmap.app. It does not work as a full-stack app but it can do pretty much:
- browse hike/bike and winter LoMaps and global satellite maps
- plan routes
- import/export routes
- import user points
- display tracks/routes and points on the map
- search places and points of interest
- sync with your mobile app on multiple devices Premium Gold only
Maps
Controlling
The map can be shifted by clicking and dragging, and zoomed with the mouse wheel. There are also zooming buttons in the top right corner:
To change the displayed map, select from the map selection:
To center the map on your approximate location, tap the centering button (the browser will need your permission to catch your location):
LoMaps
The default map for hiking, biking and other summer outdoor activities. Available worldwide in 18 zooms down to the scale 1:5000, based on topographic content with shadowed terrain and elevation contour lines. It displays a layer of lines of the marked routes for various outdoor activities and dynamic points of interest - LoPoints.
LoMaps Ski
Map for winter outdoor sports - backcountry, nordic, downhill skiing, snowshoeing etc. The topographic background is the same as on summer LoMaps, special winter LoPoints are added.
Both maps are generated from OSM data and are updated every 24 hours. For the map symbols' description, see the Map legend.
Satellite
Available with Premium Gold
Map consisting of the satellite and aerial imagery by HERE and Maxar. Available in 17 zooms down to approx. 1:10000 scale.
Satellite with labels
Available with Premium Gold
besides the aerial imagery, the map contains also road/street numbers and names and house numbers.
LoPoints

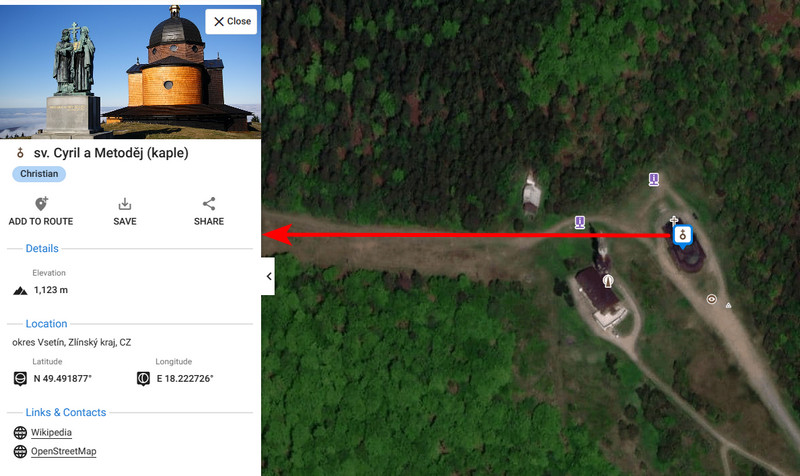

Dynamic points of interest, called LoPoints, are displayed above every map in the selection. Tapping a LoPoint shows its detailed information and photos:
Route planning
A quick sample:
<html><iframe width=“800” height=“600” src=“https://www.youtube.com/embed/q9xQgnIADe8?controls=1” title=“YouTube video player” frameborder=“0” allow=“accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share” allowfullscreen></iframe></html>
Select activity
The first step is to select an activity for which the route will be created. The planner offers two walking, three biking, two driving, one cross-country skiing and one manual drawing mode.
The manual mode is useful only when you draw the route in a free terrain or when the routing data for a particular area is missing:
Add route points
The route is created the same way as in the app. The simplest way is to click the route points directly on the map on roads and paths.
The first click must be done with the right mouse button and selecting the “Start here” option:
This way the planner switches into the drawing mode and you can add other route points by left-clicking. By shifting the cursor above the route line between the points a new point emerges and by dragging it you can change the route progress:
You can move any of the route points at any time and the route always reroutes accordingly.
Adding LoPoints and other points
You can also add LoPoints to your route. Shift the cursor on the LoPoint, and a popup emerges. Click on Add to route.
This way you can add also your user points like geocaches or search results to the route:
Changing order, deleting, reverse direction
The route points are lined up in an itinerary displayed on the panel on the left. You can change their order by click-and-drawing them up or down the line (1), delete them (2), or reverse the course of the whole route (3):

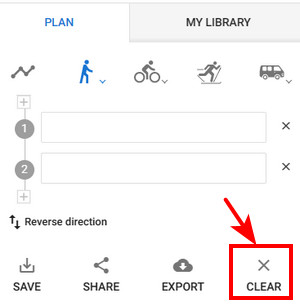

To delete the whole route from the planner, tap Clear:
Route stats

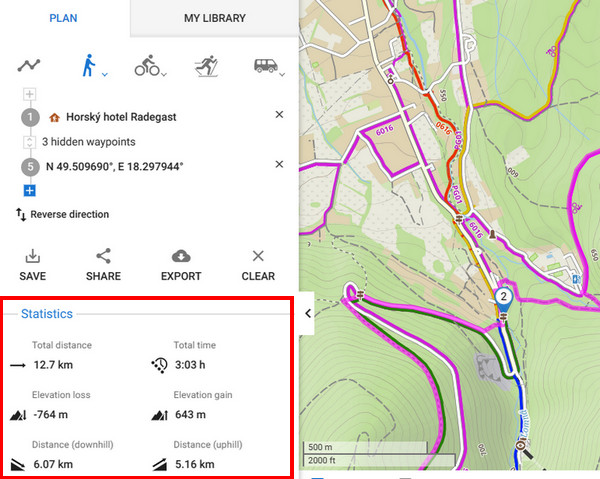

Statistics of the route like distance, estimated time or elevation gain are displayed in the left panel under the itinerary.
Elevation chart
The elevation and slope progress of the route is displayed on a chart:
The chart also displays min/max elevation and slope, waypoints and elevation/slope/distance at the position of the cursor:
You can change the X-axis parameter - distance or estimated time:
Sharing and export
Sharing a route

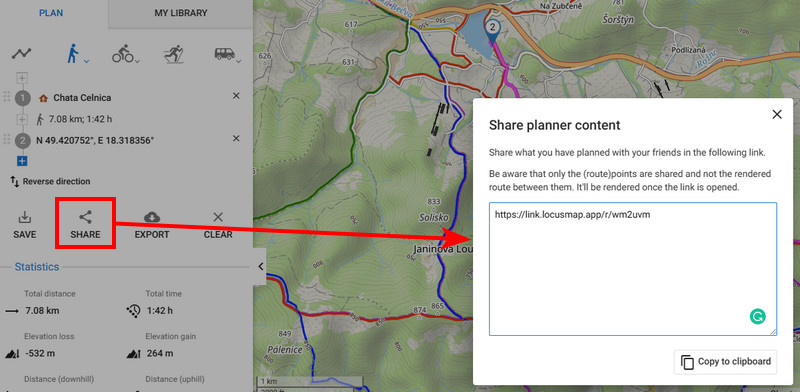

When you have planned a route, tap the Share button. A popup emerges, displaying a unique link that can be copied to the clipboard and shared:
The link contains the waypoints defining the route. When it's clicked on it opens the Locus web route planner that re-renders the route from them.
Sharing a LoPoint

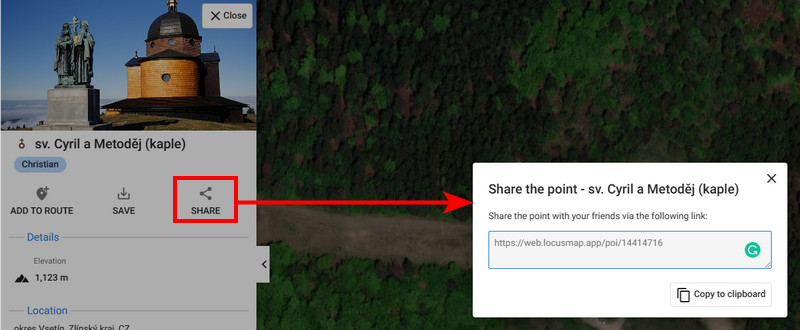

If you need to share a link to an interesting place marked on the map, tap Share on the detail panel of the LoPoint:
Sharing any place on the map

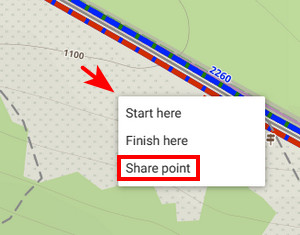

- right-click the place on the map and select Share point:

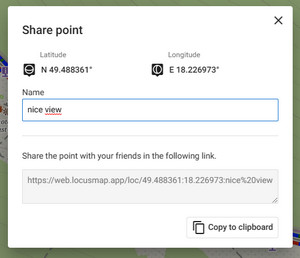

- add the name of the place (optionally) and copy the link:
Exporting a route
You can export the route as a GPX file that can be used in any navigation app or service. Click Export and then Download as GPX. If you don't want to keep the voice navigation commands in the route file, check the option:
