Points Import


About

Import is used when you want to work with points from outside of Locus - websites, apps, add-ons etc. Either you choose the data yourselves, or Locus Map receives them.

1. Launch import

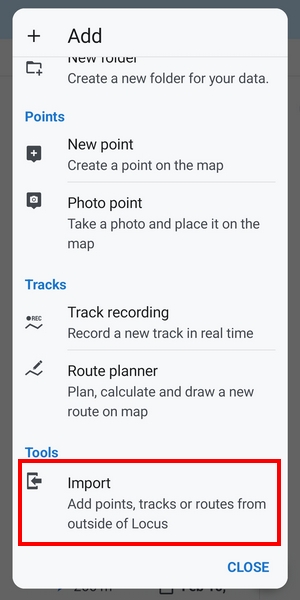

  • My Library > select a folder (optionally) > > Import

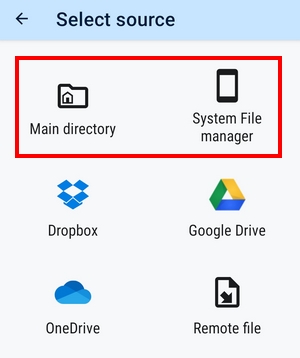

2. Select the storage

  • Main directory - contents of Locus Map's main app directory
  • System File Manager - launches the system file browser to select a file in accessible parts of the phone's storage. It does not allow multiple selection of imported files, unfortunately.
  • Dropbox — the contents of your Dropbox. A Dropbox login is required when using the drive for the first time. The logout option is included (see the top bar menu).
  • OneDrive - contents of your OneDrive. OneDrive login is required when using the drive for the first time. The logout option is included (see top bar menu).
  • Google Drive - Since September 2025, Locus Map's support for Google Drive has been banned as it was denied full access to the service.
  • Remote file - a field for inserting a URL of a remote file stored on the internet

3. Select the file

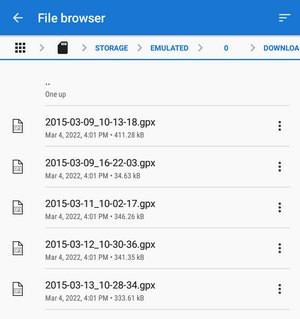

  • Importable files are in full color and are clickable (more about supported formats see below).

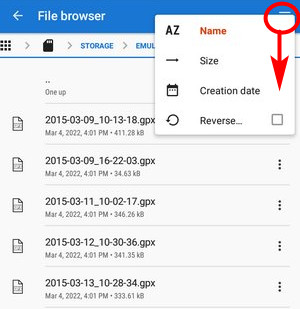

  • You can sort the files by name, size and creation date:

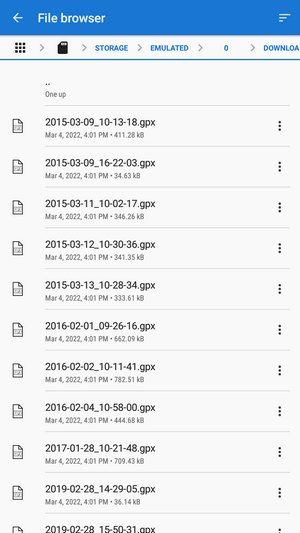

  • If you are in Locus Map's main directory, in Dropbox or OneDrive, it is possible to import more files at once. Long-press one file to display the multi-select option:

4. Select where to import

After selecting the file or receiving it from some external application or add-on Locus Map analyses it and modifies the import dialog according to the content - the dialog can process points or tracks or both of them at once.

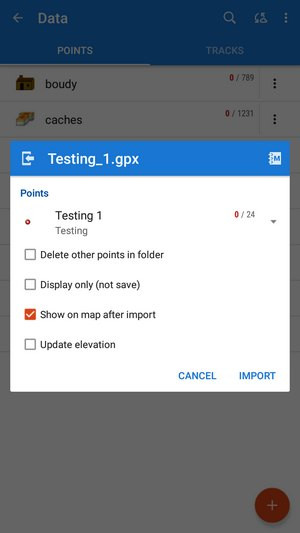

Point import dialog

Appears when the imported file contains just points:

  • top bar displays the file name
  • Folder selector - selects the folder into which the file will be imported. It is possible to create a new folder directly from the menu. If you start import from a folder action menu in Points manager it is already pre-selected.
  • Delete other points in folder - removes all other points from the selected folder before the import
  • Display only (not save) - points are just displayed on the map screen - useful for a quick preview of the imported file
  • Show on the map after import - displays imported points on the map when the import is finished
  • Update elevation - adds or updates the value of imported points' elevation (both only if the offline elevation data is available)
  • Cancel - aborts the action
  • Import - confirms the action

Supported file formats

Locus Map is able to import the following file formats:

  • KML and KMZ

Supported both for Import and Export

Keyhole Markup Language is an XML-based plain text format with a really wide range of usage. Since version 2.2 KML format is standardized by OGC so it is used by many web/desktop/mobile applications as well as by Locus Map.

  • GPX

Supported both for Import and Export

GPS eXchange format is an XML-based text format used for handling points, tracks, and routes. Locus fully supports all valid tags. A more detailed description of the GPX format is available on this Wikipedia page.

  • OpenAir

OpenAir is a special format used by aircraft pilots and navigators for defining air spaces and areas.

  • LOC

Location file format is free but a little bit limited format for importing POIs or waypoints

  • Ov2

TomTom format for POI database.

  • Upi

Sygic format for POI database.
