Live Tracking

With Locus Live tracking you share your actual location continuously in real-time.

This feature requires registration and logging in to your Locus account.

You can share your location in three modes:

  • Share with all - sharing publicly with the whole world on Live Tracking website and with all Locus users who have public live tracking active at the moment
  • Share with a group - location is shared only within a selected group of people
  • Custom - location is shared via custom defined service or a third party service

First two modes share your actual location, your name or nickname, an icon/avatar, actual speed, azimuth, GPS accuracy and altitude:
If you are moving, 15 minutes of your movement history is shared too - displayed as a line of your track on map:

The track history is displayed in the app only, not on the Live tracking website.

How to start

  • go to Menu > more functions > Live Tracking and tap. Initial page of live tracking wizard appears:
  • select who do you need to share your real-time location with:

Share with all

Your real-time location is shared with public at Live Tracking website and also with all other Locus Map users who have this type of service active.

Your icon and name are prefilled by default by values from your My Locus profile. I.e. if you logged in via Google, your Google avatar and name are used. These data can be edited:

  • press the start button and Live Tracking begins.

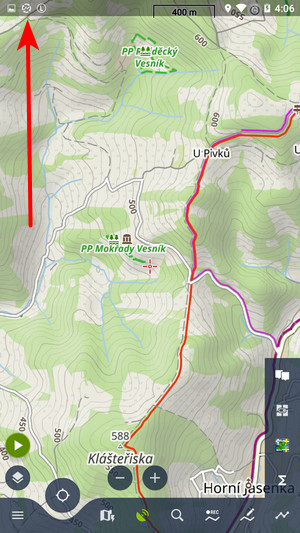

  • active Live Tracking is indicated in your device status bar:

Share with a group

Select a pre-defined group of people and share your real-time location with them. Nobody else will see your shared location. These groups were created by you or someone else.

  • tap to unfold a list of your groups:
  • tap a selected group and your group live tracking session is set:
  • if you need to join a new group, enter its access key here:

Share with a new group

Available only with Premium Gold

To start a new group, select this option. Your new group is added right away to the configuration and you can start live tracking:

Group live tracking includes also live chat - the possibility to communicate with other members of the group in real time!

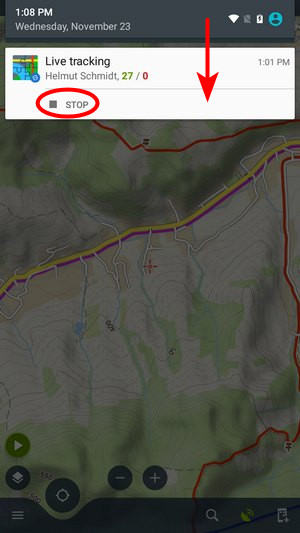

How to stop

  • roll down the system topbar
  • unfold Locus live tracking bar
  • tap the stop button


  • go to Locus menu > all features > Share > Live Tracking
  • tap the stop button at the active profile


Configurations of your live tracking sessions are stored in Profiles. You can maintain several profiles at once and use them on different occasions.

To START live tracking in selected profile, tap the green arrow button:

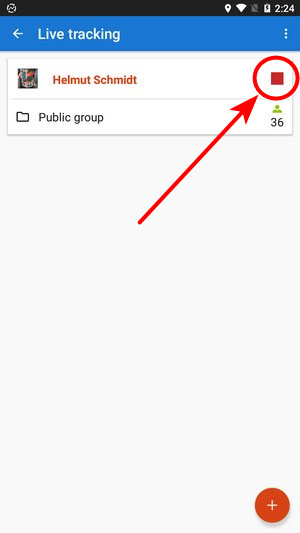

To STOP live tracking in the selected profile, tap the red square button as was mentioned above.


It is possible to start a live tracking in a selected profile automatically when you launch Locus Map:

  • open Live Tracking settings from topbar menu
  • select live tracking profile and close the box:
  • on the next Locus Map launch, the Live Tracking will be automatically started in the selected profile

Active profile

Profile that is being used for actual live tracking is highlighted red, other profiles are greyed out:

  1. associated groups of users
  2. number of active group members
  3. live tracking chat button
  4. group sharing button

Your live tracking activity is also indicated in your system tray:
It displays your Live Tracking nick, numbers of successful and unsuccessful connection attempts, and a STOP button for the quick ending of the session.

Adding profiles

To add a new profile, tap and follow instructions of the wizard >>.

Editing profiles

To edit a profile, tap the profile tab in the list:

  • nickname - how others will see you. If you logged in to My Locus with Google or Facebook, this is pre-filled with your Google/FB avatar and user name. You can change it.
  • you can add a message to other live trackers. It will appear under your name on the label on your location.
  • frequency of updating - optional setting - the shorter interval, the more accurate your monitoring but the more data and battery it consumes
  • groups - list of groups of users of which the profile is a member. When there is no particular group listed, the profile is public. By tapping a cross you can remove the profile from a group. Tap manage to create, edit and delete available groups.
  • positive feedback - switch on if you need to know if the live tracking is active
  • negative feedback - switch on if you need to know if the live tracking stops working (loss of GSM or GPS signal)
  • display last shared location - your icon stays on the map on your last fixed location for 10 more minutes even when you are offline

Deleting profiles

To delete a live tracking porfile, tap in the topbar:

Group management

Groups for sharing your real-time location with particular people can be created, edited, and deleted in a live tracking group manager. You can access it from an open configuration of any live tracking profile:

Adding a group to a profile

  • open group manager
  • tap a selected group
  • group is added:

In this case, your real-time location is now shared with two independent groups of users.

Creating a new group

Available only with Premium Gold

  • tap in Groups manager and select Add own
  • change icon, enter name and description of the new group, tap Add.
  • the new group appears under Groups in the profile configuration

Sharing a group with others

  • tap Manage again and then action menu of the new group
  • select Share
  • Locus generates a key that you can share with the members of the group via e-mail, SMS, etc. - with this key they can enter your live tracking group.

Joining a group

There are two options:

1) when sharing the access key to a group Locus generates also a direct link to it which, if clicked on a device with Locus installed, calls Locus > live tracking > your group.

2) similarly to adding your own group go to the Group manager > > Add by key > insert the key you received

Editing a group

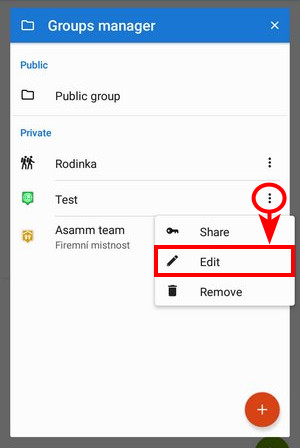

You can edit some of the group's preferences. To do so, tap Edit in the group menu:


  • Icon, name, description
  • Hide inactive members after - set a time interval after which a group member that is inactive (turned LT off, lost signal, etc…) is removed from the map - from 10 minutes to unlimited (the member remains on screen all the time LT is on)
  • Length of displayed motion history - the app (not the website) can display a track history of the movement of a group member - up to 15 minutes
  • Live chat - members of the group can chat with each other - here you can determine if the chat is enabled, disabled or read-only
  • Password needed to join - another step of securing the group entrance (not applicable on the web)

Live chat

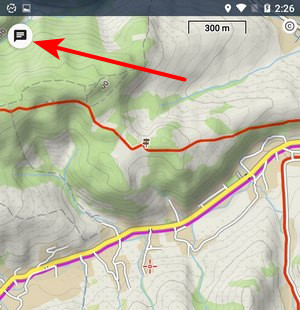

Users joined in a group live tracking can communicate in real time via live chat. It can be accessed from the main map screen:

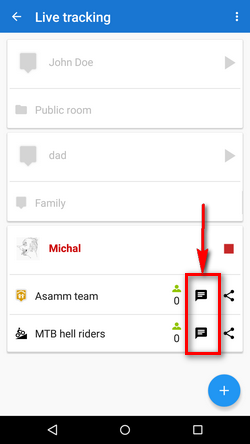

or from the list of profiles:

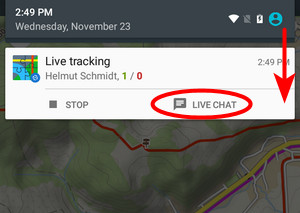

or from the system bar:

Send places

When live chatting, you can send not only messages but also places - coordinates, points of interest, geocaches… Just select from the location selector.

You can display the place on the map, navigate or guide to it right away from the chat:

Toggle among groups

When you are live tracking in more groups at once, you can toggle among more live chats:


You are notified when a new chat message comes. You can choose a beep, your own sound or vibration:

Custom live tracking

Available only with Premium

Do you want to start live tracking via a live tracking service independent of Locus? Select last option in Live tracking start menu:

Add new...

Here you can configure all parameters of live tracking on your own.

  • name your new live-tracking configuration
  • it displays as a new profile in the list
  • tap it and go on setting up:

The main parameters are:

  • update parameters of time and distance
  • required accuracy
  • base URL

Live tracking data handling:

  • Data methods - POST or GET
  • Latitude
  • Longitude
  • Altitude
  • Speed
  • Accuracy
  • Bearing
  • Time
  • Text field
  • Battery level
  • GSM signal
